Aluminum Panel Series

Aluminum panel, is one of today's aluminum building materials products deep processing series of products. For decorative building external walls, due to its adornment sex, weathering resistance and safety shows incomparable advantages and popular in the world, become recognized as a preferred luxury building exterior wall materials.
The Structure of Aluminum Panel：

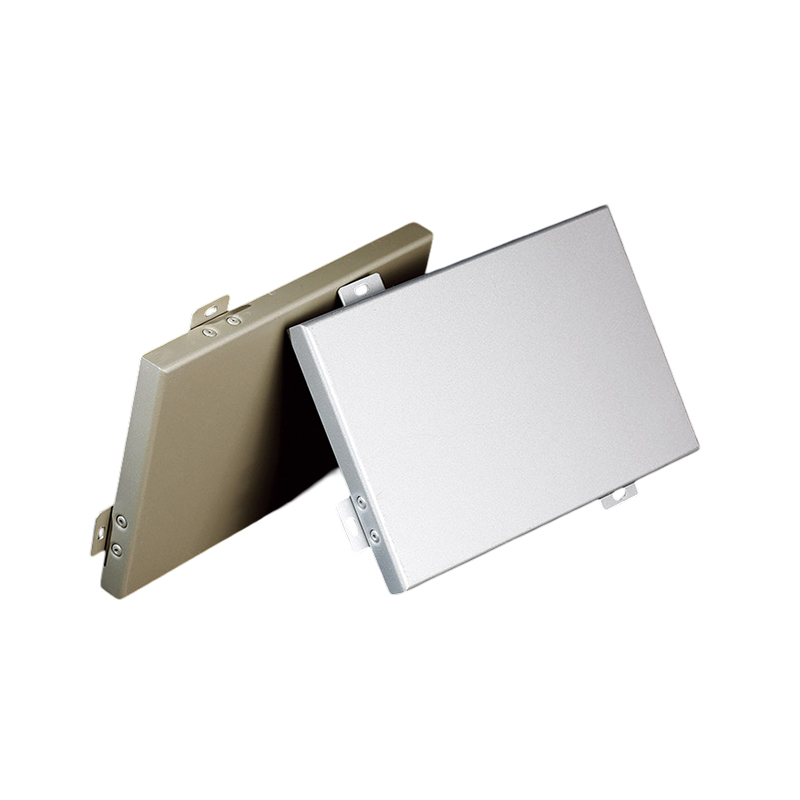

The aluminum cladding is made of high quality and high strength aluminum alloy sheet, common thickness used is 2, 2.5, 3, type 3003, and status H24. The conventional material is1220mmX2400mm. The structure is mainly composed of panels, stiffeners and bracket components. The bracket components can be directly formed from the panel through bending and pressing, and can also be formed through mounting the brackets on the hems of the panel. The stiffeners

are connected to the welding screw on the back of the panel, to become a solid whole component, has greatly enhanced the strength and rigidity of the aluminum cladding, and ensured the smoothness and seismic capacity in the long-term use. If noise and heat insulation is needed, material with high efficiency of noise and heat insulation can be installed in the inside of the aluminum sheet.

Consult

Features Technical Indicators Overall Dimension

1. Light weight, good rigidity, high strength, 3.0mm thick aluminum plate weighs 8kg per square, and has a tensile strength of 100-280n/mm2.
2. Good weather resistance and corrosion resistance. PVDF fluorocarbon paint based on Kyflat-500 and Hylur500 can last for 25 years without fading.
3. Good processability. Using the process of first processing and then painting, the aluminum plate can be processed into various complex geometric shapes such as planes, arcs and spheres.
4. Uniform coating and diverse colors. Advanced electrostatic spraying technology makes the adhesion between paint and aluminum plate uniform, with diverse colors and a wide range of choices.
5. Not easy to stain, easy to clean and maintain. The non-adhesiveness of the fluorine coating film makes it difficult for pollutants to adhere to the surface, and it has good self-cleaning properties.
6. Convenient and quick installation and construction. The aluminum plate is formed in the factory, and no cutting is required at the construction site. It can be fixed on the frame.
7. It can be recycled and reused, which is beneficial to the environment. Aluminum plates are 100% recyclable and have a high recycling value.

Product Application：

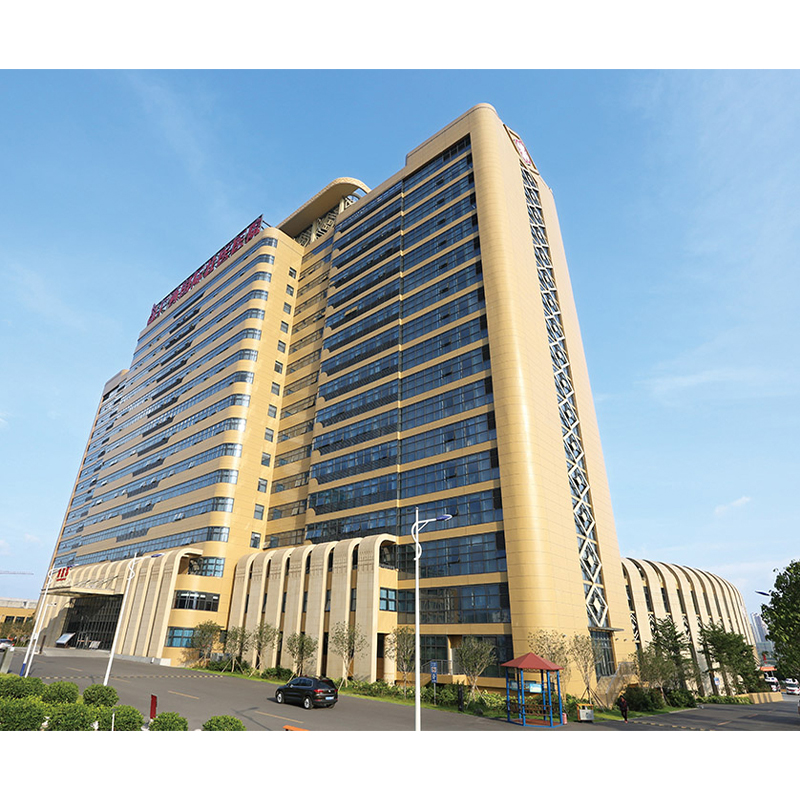

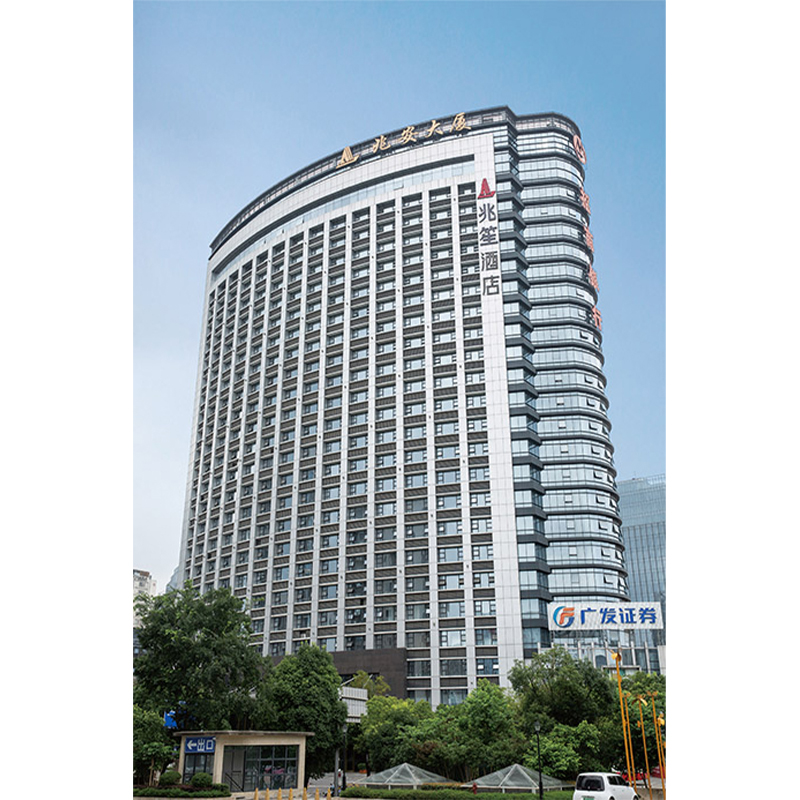

Building curtain walls, columns and beams, balconies, clapboard decoration, interior decoration, advertising signs, vehicles, furniture, booths, instrument shells,

subway, shipping tools, etc.
Surface Treatment of Single Panel Of Aluminum Curtain Wall

Panel curtain wall is usually chromites, after that, it is treated with fluorine-carbon spray coating. Polyvinylidene fluoride resin (KYNAR500) of the fluorine carbon coating finish paint and the varnish is normally divided nit 2nd coating, 3rd coating or 4rh coating. Fluorine carbon coating has outstanding characteristics of corrosion resistance and weathering resistance,resisting acid rain, salt fog and various air contaminants. Besides, is has good performance of thermal Dan cold

endurance, and it can resist strong ultraviolet, can keep unfading and chalking for a ling time, and has ling service life. Our factory chooses the high-quality fluorine carbon coating material manufactured by well-known PPG, DNT, AKZO, and NIPPON, etc. we choose nice and various colors. Customers can directly choose in accordance with the color plate manufacturers offered or provide the color sample.
